Brand Name : TSING SHAN Steel
Model Number : 316Ti
Certification : ISO9001
Place of Origin : Jiangsu, China (Mainland)
MOQ : 1 ton
Price : USD2800-4800/Ton
Payment Terms : L/C, T/T
Supply Ability : 2000T/month
Delivery Time : 5-8 work days
Packaging Details : Wooden pallets,water proof paper-20'GP or 40'GP for stainless steel sheet.
Standard : ASTM, AISI, DIN, EN, GB, JIS
Special Use : Valve Steels
Material : Stainless steel
Shape : Round
Surface : black, bright, grinding
Specifications of Stainless Steel Round Bright Bar 303 304 316L 321 316Ti 431 :
|
Stainless Steel Materials
| Stainless Steel Bright Round Bar |
| Stainless Grades | 303F/303Cu/304/304L/304F/316/316L/316F/2520/310/2507/416/630/17-4/431 |
| Standard | ASTM,AISI,DIN,EN,GB,JIS |
| Production Standard | ASTM A276, ASTM A582, ASTM A484 |
| Round Bar | Dia: 6mm - 250mm |
| Polish: HR annealed & pickled, HR &Round turned, centerless ground & polish, cold drawn& polished, Soomth tured & polished | |
| Hex Bar | AF: 8mm - 75mm |
| Polish: Cold drawn bright, Annealed, Shot blasting, Sand blasting | |
| Square Bar | AF: 3*10mm - 75*120mm |
| Polish: Cold drawn bright, Annealed, Shot blasting, Sand blasting | |
| Flat Bar | T*W: 8*8mm - 75*95mm |
| Polish: Cold drawn bright, Annealed, Shot blasting, Sand blasting | |
| Inspections | MTC (chemical composition, Mechanical Property), SGS, The Third Party |
| Tolerance | H9, H11, L12 |
| Roundness | +/-0.02mm |
| Roughness | 240 Grits |
| Staightness | 0.01mm/1Meter |
| Stainless steel bar long | As clients's requirements |
| Application | Precision machined components, Screw machined products, CNC turning/mill products, Shaft, Automotive components, Medical and Aerospace and electronic components |
| Production capacity | 200 Tons/ Month |
| Samples | Available, 2 days |
| MOQ | 500KGS (can be mixed sizes) |
| Delivery time | A.7 days if this goods is stock goods. |
| B.20 days if this goods will be produced after order |
| Material No. | EN Designation | AISI/SAE | UNS |
| 1.4571 | X6CrNiMoTi17-12-2 | 316Ti | S31635 |
| Chemical Composition of Stainless Steel 316Ti Round Bar | ||||||||
| C≤% | Si≤% | Mn≤% | P≤% | S≤% | Cr % | Mo % | Ni≤%
| Ti≤% |
| 0.08 | 1.00 | 2.00 | 0.045 | 0.015 | 16.5-18.5 | 2.00-2.50 | 10.5-13.5 |
5*C |
| Mechanical Properties 20℃ of Stainless Steel 316Ti Round Bar | ||||
| Hardness HB 30 ≤ HB | 0.2% Yield Strength Rp ≥N/mm2 | Tensile Strength Rm N/mm2 | Elongation A5 ≥% | Modulus of Elasticity kN/ mm2 |
| 215 | 200 | 500-700 | 40/30 | 200 |
| Physical Properties 20℃ of Stainless Steel 316Ti Round Bar | |||
| Density g/cm3 | Specific Heat Capacity J/kg K | Thermal Conductivity W/m K | Electrical Resistivity Ω mm2/m |
| 8 | 500 | 15 | 0.75 |
Product details




|
|

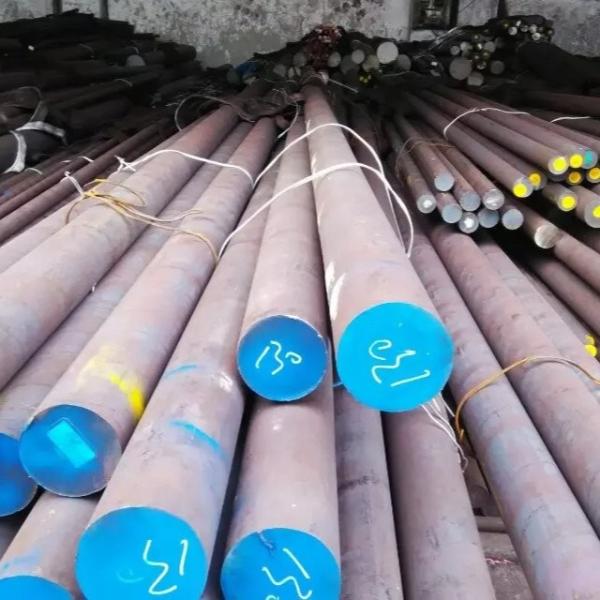

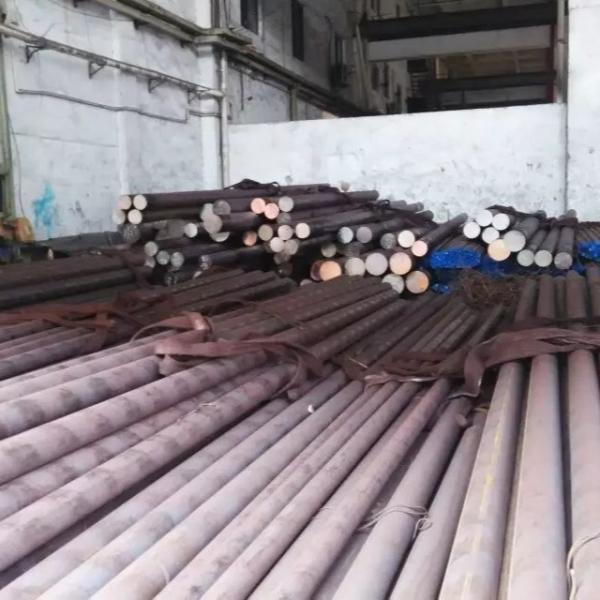

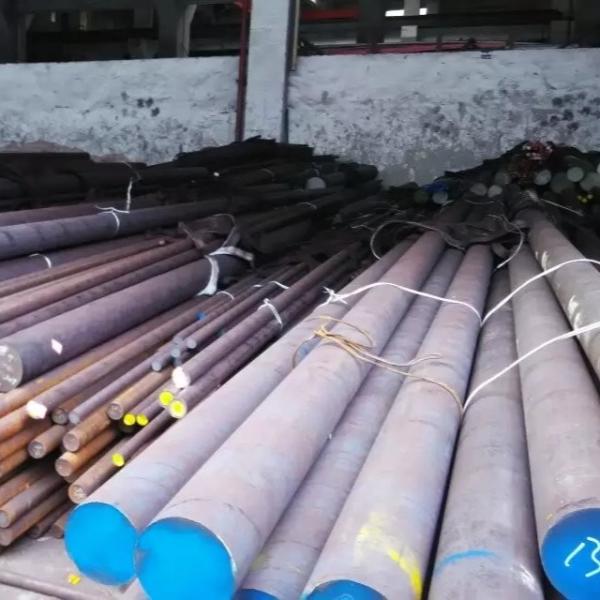

ASTM A479 /A479M DIN1.4571 SUS316Ti Stainless Steel Round Bar X6CrNiMoTi17-12-2 Solid Rod Images |
